Medoc ST320 Table Top Meat Bandsaw

• External Dimensions (WxDxH) see diagram
• Installation Bolted to pedestal
• Blade Length 2340mm
• Blade Speed 23 m/s
• Blade Wheel Type Aluminium with single rim
• Blade Wheel Diameter 300mm
• Max Cutting Height 320mm
• Max Cutting Thickness 275mm
• Motor 2 HP
• Electrics 1 phase 13AMP or 3 phase 16AMP
• Construction stainless steel
• Weight 97kg

N.B. THE 1ph VERSION OF THIS MACHINE IS NOT TO BE USED MORE THAN 30 MINUTES AT ONE TIME

IF YOU ARE CUTTING COWS FEET PLEASE CALL US!

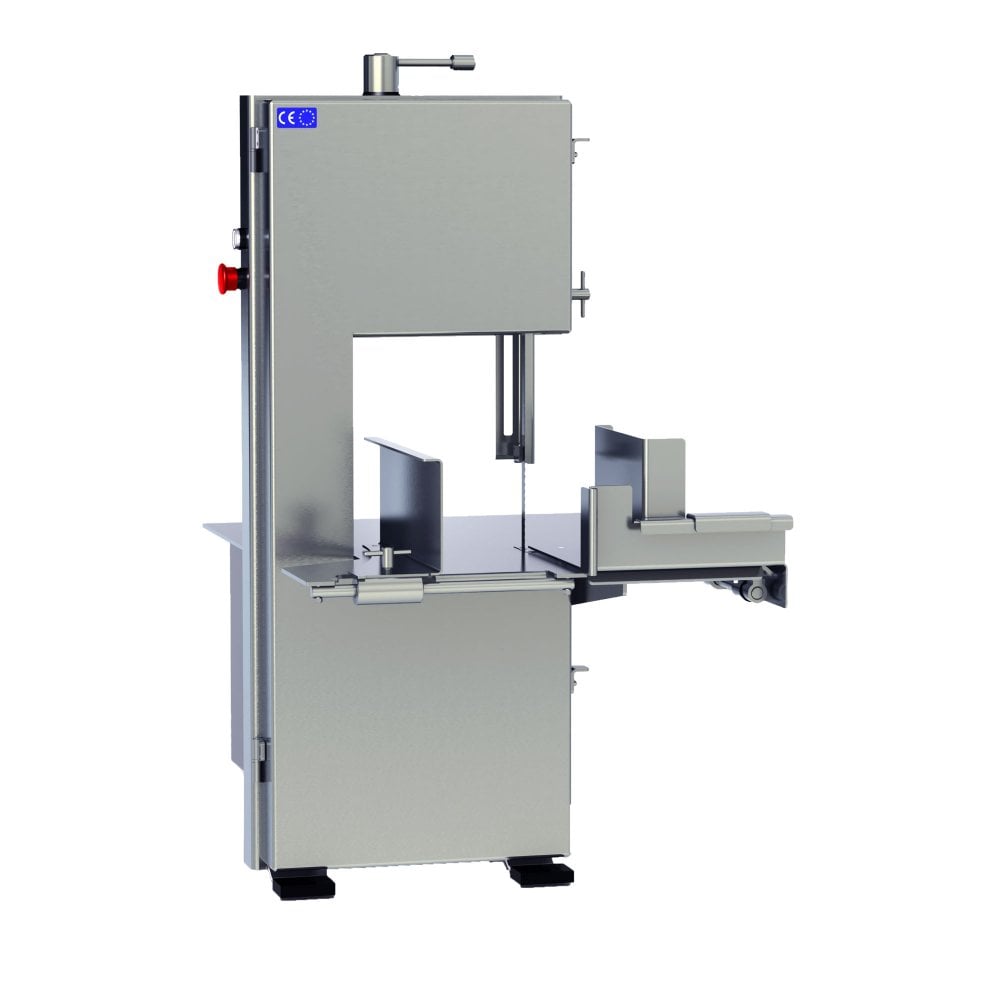

Medoc ST320 Stainless Steel Table Top Meat Bandsaw

The Medoc ST320 Meat Bandsaw is a heavy-duty commercial table top meat bandsaw designed for professional butchers, meat processors, supermarkets and food preparation businesses requiring a larger cutting capacity.

Manufactured in Spain by Medoc, the ST320 is the largest model in the manufacturer's ST table top bandsaw range, offering a 320mm maximum cutting height and 275mm cutting thickness. This additional capacity makes it particularly suitable for businesses processing larger joints of meat, bone-in products and other demanding butchery applications.

Constructed from durable 18/10 stainless steel, the Medoc ST320 combines robust construction with practical features designed to simplify operation, cleaning and maintenance.

Increased Cutting Capacity for Professional Butchers

The Medoc ST320 provides a larger cutting area than the smaller ST230 and ST270 models, making it a practical choice for businesses handling larger meat products.

With a 320mm cutting height, 275mm cutting thickness and 2340mm bandsaw blade, the machine offers flexibility for cutting and portioning a wide variety of fresh and frozen meat products, using the appropriate blade.

The ST320 features 300mm diameter blade wheels and an automatic preset blade tensioning system, helping maintain correct blade tension during operation.

A half sliding table provides additional support when handling meat products, while the adjustable thickness guide assists with consistent portioning.

Professional Table Top Design

Despite its increased cutting capacity, the Medoc ST320 remains a table top meat bandsaw, designed for installation on a suitable work surface.

For customers requiring a machine that can be positioned independently, a separate stainless steel pedestal is available as an optional extra.

Please note: Adding the pedestal does not convert the ST320 into a purpose-built floor-standing bandsaw. The machine remains a table top ST320 securely bolted onto a separate pedestal, retaining the same cutting capacity and operating characteristics.

Customers requiring a dedicated floor-standing bandsaw should consider the purpose-built floor-standing models within the Medoc range.

Hygienic Stainless Steel Construction

Manufactured from robust 18/10 stainless steel, the Medoc ST320 is designed for professional food processing environments where hygiene and ease of cleaning are essential.

The machine features an IP65 protection rating, an integrated waste collection tray and removable blade cleaners that can be detached without tools.

These features help simplify daily cleaning and routine maintenance, making the ST320 a practical solution for busy butcher shops and meat preparation facilities.

Key Features and Benefits

320mm cutting height – increased clearance for larger meat products.

275mm cutting thickness – suitable for a range of professional meat cutting applications.

2340mm bandsaw blade – designed for larger cutting requirements.

300mm blade wheels – aluminium blade wheels supplied as standard.

Automatic blade tensioning – helps maintain correct blade tension during operation.

Half sliding table – included as standard to assist with product handling.

18/10 stainless steel construction – robust and designed for hygienic food preparation.

IP65 protection rating – suitable for demanding food processing environments.

Removable blade cleaners – simplify routine cleaning and maintenance.

Integrated waste collection tray – helps collect cutting residues.

Table top design – can be installed on a suitable work surface or mounted onto an optional pedestal.

Standard Equipment and Optional Extras

Included as Standard

• Half sliding table
• Aluminium blade wheels
• Automatic preset blade tensioning system
• Integrated waste collection tray
• Removable blade cleaners

Optional Extras – Additional Cost

• Stainless steel blade wheels
• Stainless steel pedestal

The stainless steel pedestal allows the table top ST320 to be mounted independently without a separate workbench. It does not change the machine into a purpose-built floor-standing model.

Please contact Superior Food Machinery for further information on available configurations and optional extras.

Ideal for Butchers and Meat Processing Businesses

The Medoc ST320 commercial meat bandsaw is suitable for professional butchers, wholesale meat processors and food preparation businesses requiring greater cutting capacity than smaller table top bandsaws.

Whether you're replacing an existing bandsaw, expanding your butchery operation or upgrading your meat cutting equipment, the ST320 offers a practical combination of cutting capacity, robust construction and straightforward maintenance.

At Superior Food Machinery, our experienced team can help you choose the right meat bandsaw for your requirements, taking into account the products being processed, available workspace and production demands.

Contact Superior Food Machinery for further information, pricing and availability of the Medoc ST320 Meat Bandsaw.
