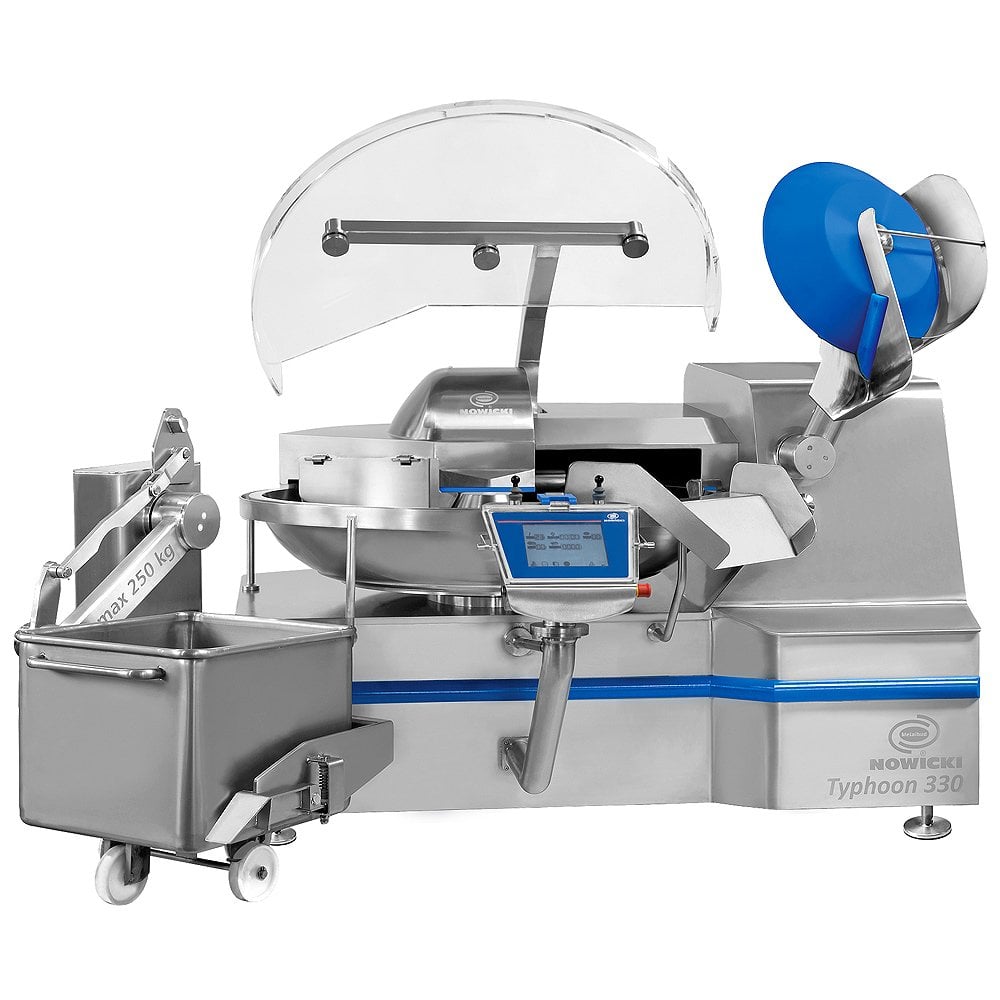

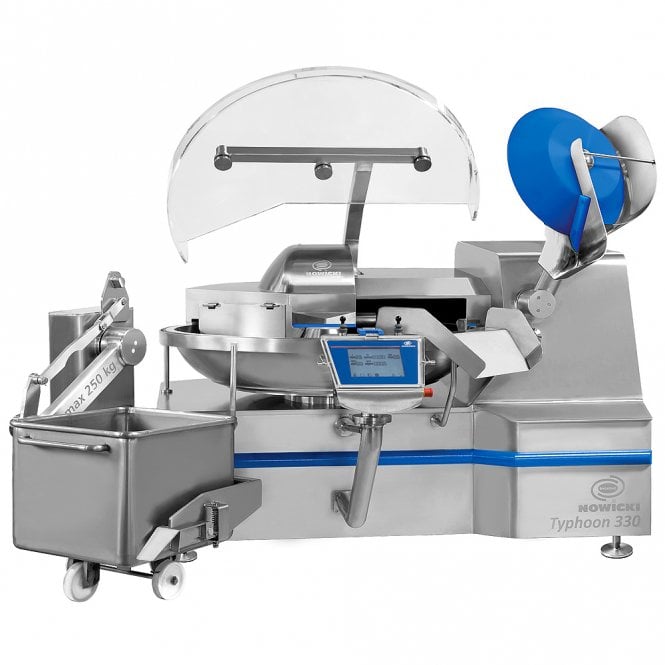

Nowicki KN330HL Industrial Bowl Cutter / Chopper

• External Dimensions (WxDxH) See diagram
• Power 3ph 120kW
• Volume 330 litre
• Capacity 80-300kg product (depending on product type)
• Knife Speed Variable between 100 to 4500rpm
• Mixing Speed Variable between 100 to 300rpm
• Bowl Speed Variable between 2 to 20rpm
• Digital Thermometer included
• Control Panel Touch panel with joysticks to control covers, loader & unloader
• Weight 4800kg machine & 300kg control panel

Optional extras available:

• Additional knife set (6 pieces U4 or U3)
• Auto water dosing
• SCADA monitoring system with industrial computer
• Additional outside ventilation system
• Air conditioning system for electric box (in case of high humidity or temp over 30'C)
• Remote drive of master switch (recommended when electric box is located in another room)
• Inspection hole in front cover
• Additional guarded cabling

Nowicki KN330HL Industrial Bowl Cutter / Chopper

The Nowicki KN330HL Industrial Bowl Cutter is a heavy-duty, high-speed food processing machine designed for chopping, mixing and emulsifying meat and other suitable food products.

Manufactured by Metalbud Nowicki, the KN330HL features a 330-litre stainless steel bowl, variable-speed cutting system and industrial product-handling equipment, making it particularly suitable for sausage manufacturers, meat processors and prepared food production facilities.

Also known as an industrial bowl chopper, the machine combines high-speed cutting knives with a rotating bowl to process ingredients to the required texture and consistency.

Its adjustable cutting and mixing speeds allow manufacturers to produce a wide range of products, from coarsely chopped meat mixtures through to finely emulsified sausage meat.

330-Litre Bowl Capacity for Industrial Production

One of the main advantages of the Nowicki KN330HL is its substantial 330-litre bowl capacity.

The machine is designed for manufacturers processing regular, high-volume batches of meat and other suitable ingredients.

A KN330HL distributor specification quotes a working product capacity of approximately 80–300kg per batch, depending on the product being processed.

The actual working capacity will depend on ingredient density, recipe formulation, required texture and processing conditions.

This makes the KN330HL suitable for businesses requiring industrial chopping capacity while retaining flexibility for different production batches.

High-Speed Chopping and Emulsification

The Nowicki KN330HL features a variable-speed cutting system designed for different meat processing applications.

The KN330HL distributor specification lists adjustable knife speeds of 100–4,500 rpm, while Nowicki's standard KN330 manufacturer documentation lists 200–4,500 rpm.

This flexibility allows the chopping process to be adapted to the required product texture.

Lower cutting speeds can be used for controlled chopping, while higher speeds are suitable for fine chopping and emulsification.

The rotating bowl continuously moves ingredients through the cutting area, helping achieve consistent processing throughout the batch.

Controlled Mixing and Ingredient Distribution

In addition to high-speed chopping, the Nowicki KN330HL offers reverse-direction mixing at approximately 100–300 rpm.

This allows ingredients to be mixed without relying exclusively on high-speed cutting.

The bowl speed is adjustable between 2 and 20 rpm, giving operators additional control over ingredient movement during processing.

This combination of chopping and mixing functions is particularly useful when producing sausages and prepared meat products requiring consistent ingredient distribution.

Applications for the Nowicki KN330HL

Sausage Manufacturing

The KN330HL is particularly suitable for preparing sausage mixtures, allowing meat, fat, seasonings and other ingredients to be chopped and mixed to the required consistency.

Meat Emulsions

Its high-speed cutting system can be used to prepare fine meat emulsions for suitable sausage and processed meat products.

Pâtés and Fine Meat Products

The machine can be used to produce finely chopped mixtures for pâtés, spreads and other processed meat products requiring a uniform texture.

Burger and Meat Product Manufacturing

Depending on the required recipe and texture, the KN330HL can be used to chop and mix ingredients for burgers and other formed meat products.

Prepared Food Manufacturing

The machine may also be suitable for fish products, fillings and other food mixtures requiring industrial chopping and mixing, subject to the manufacturer's recommendations.

Hydraulic Loading and Unloading

Handling substantial batches efficiently is an important consideration when selecting an industrial bowl cutter.

The KN330HL is available with hydraulic loading and unloading arrangements designed to simplify the movement of ingredients through the production process.

A hydraulic loader can assist with transferring ingredients from compatible production trolleys into the cutting bowl.

The product unloading system helps transfer processed mixtures from the machine to the next stage of production.

The KN330HL also features hydraulic cover operation, allowing controlled movement of the bowl covers.

These features help reduce manual handling requirements and support efficient production workflows.

Industrial Touchscreen Controls

The Nowicki KN330HL is available with an industrial touchscreen control panel designed to manage chopping and mixing operations.

A distributor-listed KN330HL configuration includes touchscreen controls with joysticks for operating the covers, loading system and product unloader.

The control system allows operators to manage machine functions and adjust processing parameters according to the required product.

Additional automation and monitoring features are available depending on the machine configuration.

Stainless Steel Construction and Hygienic Design

The Nowicki KN330HL is designed for demanding industrial food processing environments where hygiene and regular cleaning are essential.

Its stainless steel construction and polished product-contact surfaces are intended to support hygienic processing and routine cleaning.

The manufacturer's industrial cutter range incorporates accessible processing areas and features designed to minimise the accumulation of product residues.

The machine's robust construction makes it suitable for regular industrial chopping, mixing and emulsification operations.

Key Features and Benefits

• 330-litre bowl capacity – designed for substantial industrial production batches.

• Approximately 80–300kg working capacity – depending on product and configuration.

• High-speed cutting system – up to 4,500 rpm.

• Variable-speed mixing – approximately 100–300 rpm in reverse direction.

• Adjustable bowl rotation – 2–20 rpm.

• Six-knife cutting head – manufacturer-listed KN330 configuration.

• Hydraulic loading and unloading – supports efficient ingredient handling.

• Hydraulically operated covers – designed for controlled industrial operation.

• Touchscreen control system – allows operators to manage processing functions.

• Digital temperature indication – included in a published KN330HL distributor configuration.

• Stainless steel construction – designed for professional food processing environments.

• Chopping, mixing and emulsification – suitable for sausage production and finely processed meat products.

• Optional automation and monitoring– additional processing controls available according to specification.



Standard Equipment and Available Options

The Nowicki KN330HL is designed around a large-capacity industrial chopping system with adjustable cutting and mixing speeds.

Principal Machine Features

• 330-litre stainless steel bowl

• High-speed cutting knife assembly

• Adjustable cutterhead speed

• Reverse-direction mixing

• Variable bowl rotation

• Stainless steel machine construction

• Touchscreen control system

• Digital temperature indication

• Hydraulic loading and unloading arrangements

• Hydraulically operated covers

• Industrial safety and control systems

Available Options and Upgrades

Depending on the selected configuration, optional equipment can include:

• Additional six-piece knife sets

• Alternative knife profiles

• Automatic water dosing system

• SCADA monitoring system with industrial computer

• Additional external ventilation

• Air conditioning for the electrical control cabinet

• Remote operation of the main isolator

• Inspection opening in the front cover

• Additional protected cabling

The exact standard equipment and optional upgrades should be confirmed against the machine specification supplied by Superior Food Machinery.

Nowicki KN330HL vs KN330V – What's the Difference?

Both the Nowicki KN330HL and KN330V are heavy-duty industrial bowl cutters designed for chopping, mixing and emulsifying meat products.

Both feature a 330-litre bowl capacity, making them suitable for industrial sausage production and prepared meat manufacturing.

The main difference is the processing method.

The Nowicki KN330HL is a conventional industrial bowl cutter. It uses high-speed cutting knives and a rotating bowl to chop and mix ingredients without a vacuum processing system.

The Nowicki KN330V incorporates vacuum processing, allowing ingredients to be chopped and mixed under reduced pressure.

Vacuum chopping helps minimise air incorporation into the mixture, which can be beneficial when producing finely emulsified sausages and other products where a uniform texture is particularly important.

Both models offer high-speed cutting up to 4,500 rpm, although the precise minimum cutting speed should be confirmed for the supplied configuration.

The KN330V also requires a larger installation footprint and has a higher machine weight due to its vacuum processing arrangement.

Which model should you choose?

The KN330HL is particularly suitable for manufacturers requiring industrial chopping, mixing and emulsification without vacuum processing.

The KN330V is better suited to applications where controlling air incorporation during chopping is an important part of the production process.

The most suitable machine will depend on the product formulation, batch size, required texture and processing requirements.

Nowicki KN330HL vs KN550HL – Which Capacity Is Right?

The Nowicki KN330HL and KN550HL are both industrial bowl cutters designed for substantial meat processing applications.

The KN330HL features a 330-litre bowl, making it suitable for manufacturers requiring high-capacity chopping with flexibility for different batch sizes.

The larger KN550HL offers a 550-litre bowl, providing additional capacity for businesses processing larger quantities of the same product.

The KN330HL has a manufacturer-listed maximum cutterhead speed of 4,500 rpm, compared with 3,800 rpm for the standard KN550 range.

The larger KN550HL also requires additional installation space and has a higher overall machine weight.

Which model should you choose?

The KN330HL is a suitable choice for manufacturers requiring a 330-litre industrial bowl cutter.

The KN550HL is better suited to businesses processing larger batches where the additional bowl capacity can support their production requirements.

Nowicki Industrial Bowl Cutters from Superior Food Machinery

At Superior Food Machinery, we understand that selecting an industrial bowl cutter involves more than simply choosing a bowl capacity.

Product type, required texture, batch size, chopping speeds, temperature control and ingredient handling all need to be considered.

Our experienced team can help you assess your production requirements and select suitable Nowicki food processing machinery.

Contact Superior Food Machinery for further information, pricing and availability of the Nowicki KN330HL Industrial Bowl Cutter.
