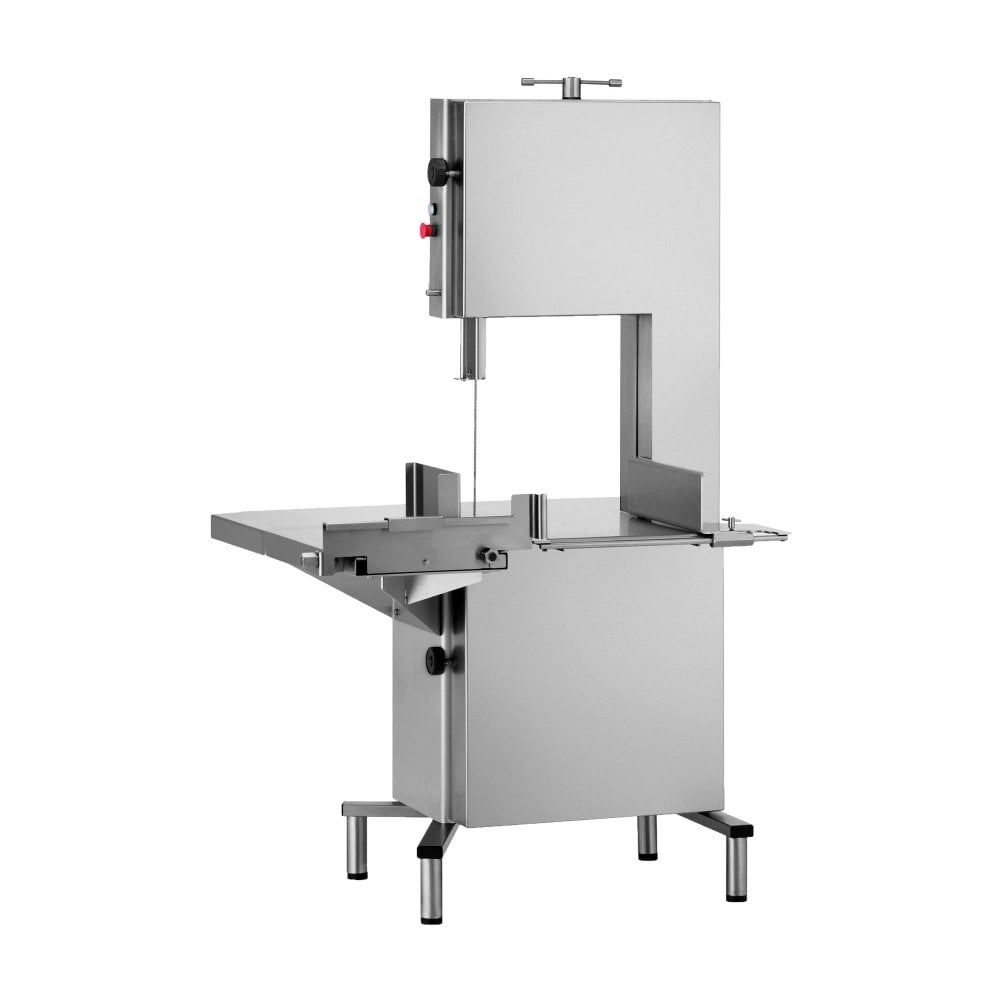

Medoc STL350 Floor Standing Meat Bandsaw - Sliding Table

• External Dimensions (WxDxH) see diagram
• Blade Length 2500mm
• Blade Speed 23 m/s
• Blade Wheel Type Stainless steel with double rim
• Blade Wheel Diameter 300mm
• Max Cutting Height 350mm
• Max Cutting Thickness 275mm
• Motor 3 HP (3 phase / 1 phase)
• Electrics 1ph 16AMP or 3ph 16AMP
• Construction stainless steel
• Weight 170kg

Medoc STL350 Sliding Table Floor Standing Meat Bandsaw

The Medoc STL350 Sliding Table Meat Bandsaw is a heavy-duty, professional floor-standing meat cutting bandsaw designed for butchers, meat processors, wholesale meat suppliers and commercial food production facilities.

Manufactured in Spain by Medoc, the STL350 features robust 18/10 stainless steel construction and a moving cutting table designed to assist with the handling and cutting of meat products.

Unlike smaller table top bandsaws mounted onto separate pedestals, the Medoc STL350 is a purpose-built floor-standing machine, designed for professional meat processing applications.

Sliding Table for Easier Product Handling

This version of the Medoc STL350 features a stainless steel sliding table, providing a moving work surface that helps operators guide products through the cutting area.

The sliding table is particularly useful when processing larger or heavier meat joints, helping provide controlled product movement during cutting.

Compared with the fixed-table STL350, the sliding-table version offers a different method of handling and feeding products, making it suitable for businesses that prefer a moving cutting surface.

The choice between fixed and sliding tables will depend on the products being processed and the operator's working requirements.

Heavy-Duty Meat Cutting Performance

The Medoc STL350 provides a 350mm maximum cutting height and 275mm cutting thickness, offering generous capacity for professional meat cutting and portioning.

The machine uses a 2500mm bandsaw blade, operating at approximately 23 metres per second, and features 300mm diameter stainless steel blade wheels with a double-rimmed design.

An automatic blade tensioning system helps maintain the correct blade tension during operation, while the adjustable thickness guide assists with consistent portioning.

Stainless Steel Double-Rimmed Blade Wheels

The Medoc STL350 is supplied with stainless steel double-rimmed blade wheels as standard.

These robust blade wheels form part of the machine's professional construction and are designed for demanding meat processing environments.

Unlike the smaller Medoc ST table top models, where stainless steel blade wheels may be offered as an upgrade, the STL350 includes stainless steel double-rimmed wheels as standard equipment.

Hygienic Stainless Steel Construction

Manufactured from durable 18/10 stainless steel, the Medoc STL350 is designed for food processing environments where hygiene and ease of cleaning are essential.

The machine features a one-piece body construction, removable blade cleaners and blade wheel scrapers.

The blade cleaners can be removed without tools, simplifying routine cleaning and maintenance.

Operator Safety Features

The Medoc STL350 incorporates several safety features for professional meat processing environments, including:

• Automatic blade braking system designed to stop the blade within four seconds.
• Emergency stop button.
• Safety interlock when opening the machine door.
• No-volt release protection.
• IP65-rated controls.

Operators should receive appropriate training and follow the manufacturer's operating and safety instructions.

Key Features and Benefits

Purpose-built floor-standing bandsaw – designed for professional meat processing.

Sliding stainless steel cutting table – assists with controlled product handling and feeding.

350mm cutting height – provides clearance for larger meat products.

275mm cutting thickness – suitable for a range of professional meat cutting applications.

2500mm bandsaw blade – designed for demanding cutting requirements.

300mm stainless steel double-rimmed blade wheels – included as standard.

Automatic blade tensioning – helps maintain correct blade tension.

18/10 stainless steel construction – robust and hygienic.

Automatic blade braking – designed to stop the blade within four seconds.

Removable blade cleaners – simplify routine cleaning and maintenance.

Left-hand and right-hand configurations – available to suit different working arrangements.

Standard Equipment and Available Configurations

Included as Standard

• Stainless steel sliding table
• Stainless steel double-rimmed blade wheels
• Automatic blade tensioning
• Blade braking safety system
• Removable blade cleaners
• Emergency stop and door safety interlock

Available Configurations

• Right-sided blade arrangement
• Left-sided blade arrangement
• Electrical supply configurations, subject to availability

Please contact Superior Food Machinery to confirm the available machine configuration and electrical requirements.

STL350 Fixed Table vs Sliding Table – What's the Difference?

Both versions of the Medoc STL350 share the same fundamental bandsaw design, cutting capacity and stainless steel construction.

The STL350 Fixed Table features a stationary stainless steel work surface.

The STL350 Sliding Table features a moving table that allows products to be guided through the cutting area with the table.

The sliding-table version may be preferable for applications where operators benefit from a moving support surface when handling meat products.

At Superior Food Machinery, we can help you select the most suitable table configuration for your processing requirements.

Ideal for Professional Butchers and Meat Processors

The Medoc STL350 Sliding Table Bandsaw is suitable for professional butcher shops, wholesale meat processors and commercial food production facilities requiring a robust floor-standing meat cutting machine.

Whether you're replacing an existing bandsaw, upgrading your processing equipment or looking for a sliding-table machine to suit your cutting operation, the STL350 combines generous cutting capacity with durable construction and practical safety features.

At Superior Food Machinery, our experienced team can help you choose the right meat bandsaw for your application.

Contact Superior Food Machinery for further information, pricing and availability of the Medoc STL350 Sliding Table Meat Bandsaw.
