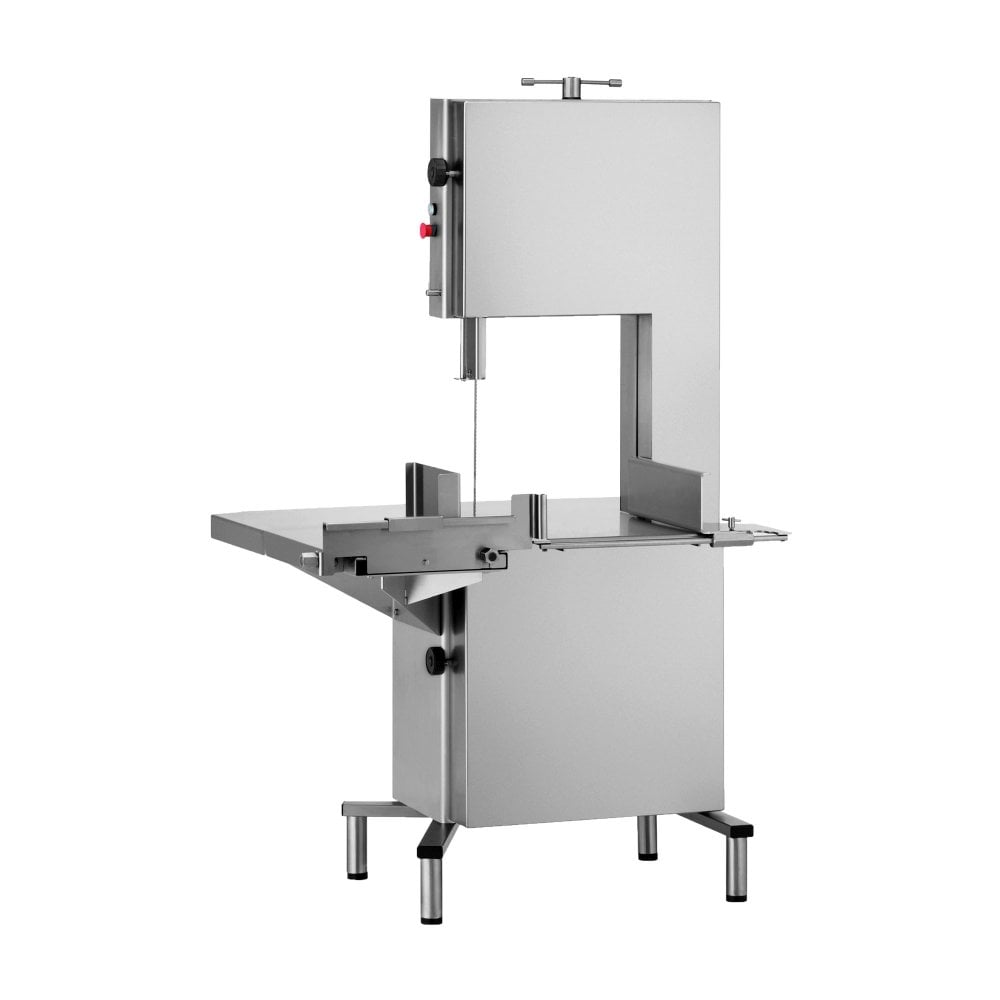

Medoc STL390 Floor Standing Meat Bandsaw - Sliding Table

• External Dimensions (WxDxH) see diagram
• Blade Length 2910mm
• Blade Speed 28 m/s
• Blade Wheel Type stainless steel with double rim
• Blade Wheel Diameter 360mm
• Max Cutting Height 400mm
• Max Cutting Thickness 335mm
• Motor 3.5HP (1ph) or 4HP (3ph)
• Electrics 1ph 16AMP or 3 phase 16AMP
• Construction stainless steel
• Weight 205kg

Medoc STL390 Sliding Table Floor Standing Meat Bandsaw

The Medoc STL390 Sliding Table Meat Bandsaw is a heavy-duty, industrial floor-standing meat bandsaw designed for professional butchers, wholesale meat processors and food manufacturing businesses requiring greater cutting capacity.

Manufactured in Spain by Medoc, the STL390 combines robust 18/10 stainless steel construction with a sliding cutting table, providing a practical solution for cutting and portioning larger meat products.

With a 400mm maximum cutting height, 335mm cutting thickness and powerful motor options, the STL390 is particularly suited to demanding commercial meat processing environments.

Unlike smaller table top bandsaws mounted onto separate pedestals, the STL390 is a purpose-built floor-standing machine, designed for professional meat cutting operations.

Sliding Table for Controlled Product Handling

The Medoc STL390 features a stainless steel sliding table, providing a moving work surface that assists operators when handling and cutting larger meat products.

The sliding table allows products to be supported as they move through the cutting area, helping operators guide heavier joints and bone-in products during cutting.

This configuration is particularly useful for businesses processing larger quantities of meat or working with products that benefit from a moving support surface.

Increased Cutting Capacity for Industrial Meat Processing

The Medoc STL390 offers a 400mm maximum cutting height and 335mm cutting thickness, providing greater cutting clearance than the smaller STL350 model.

The machine uses a 2910mm bandsaw blade running on 360mm diameter stainless steel blade wheels, with a blade speed of approximately 28 metres per second.

An automatic blade tensioning system helps maintain the correct blade tension during operation, while the adjustable thickness guide assists with consistent meat portioning.

The increased cutting capacity makes the STL390 a practical choice for professional meat processors handling larger joints, bone-in meat and other demanding cutting applications.

Stainless Steel Double-Rimmed Blade Wheels

The Medoc STL390 is supplied with stainless steel double-rimmed blade wheels as standard.

These robust blade wheels are designed for demanding meat processing environments and form part of the machine's heavy-duty stainless steel construction.

Unlike smaller Medoc ST table top models, where stainless steel blade wheels may be offered as an optional upgrade, the STL390 includes them as standard equipment.

Hygienic Stainless Steel Construction

Manufactured from durable 18/10 stainless steel, the Medoc STL390 is designed for food processing environments where hygiene and straightforward cleaning are essential.

The machine features a one-piece body construction, removable blade cleaners and blade wheel scrapers.

The blade cleaners can be removed without tools, simplifying routine cleaning and maintenance.

Operator Safety Features

The Medoc STL390 incorporates a range of safety features for professional meat processing environments, including:

• Automatic blade braking system designed to stop the blade within four seconds.
• Emergency stop button.
• Safety interlock when opening the machine door.
• No-volt release protection.
• IP65-rated controls.

Operators should receive appropriate training and follow the manufacturer's operating and safety instructions.

Key Features and Benefits

Purpose-built floor-standing design – robust construction for demanding commercial meat processing.

Stainless steel sliding table – assists with controlled handling and feeding of larger meat products.

400mm cutting height – generous clearance for larger meat joints.

335mm cutting thickness – suitable for a wide range of professional meat cutting applications.

2910mm bandsaw blade – designed for larger cutting requirements.

360mm stainless steel double-rimmed blade wheels – included as standard.

Automatic blade tensioning – helps maintain correct blade tension during operation.

18/10 stainless steel construction – robust and hygienic.

Automatic blade braking – designed to stop the blade within four seconds.

Removable blade cleaners – simplify routine cleaning and maintenance.

Left-hand and right-hand configurations – available to suit different working arrangements.

Standard Equipment and Available Configurations

Included as Standard

• Stainless steel sliding table
• Stainless steel double-rimmed blade wheels
• Automatic blade tensioning
• Blade braking safety system
• Removable blade cleaners
• Emergency stop and door safety interlock

Available Configurations

• Right-sided blade arrangement
• Left-sided blade arrangement
• Electrical supply options, subject to availability

Please contact Superior Food Machinery to confirm the available machine configuration and electrical requirements.

STL350 vs STL390 – What's the Difference?

Both machines are purpose-built floor-standing bandsaws designed for professional meat cutting applications.

The STL350 offers a 350mm cutting height and 275mm cutting thickness, making it suitable for a variety of commercial butchery applications.

The STL390 provides a larger 400mm cutting height and 335mm cutting thickness, offering additional clearance for businesses handling larger meat products.

Both models are available with sliding tables and feature stainless steel double-rimmed blade wheels, automatic blade tensioning and robust stainless steel construction.

Ideal for Professional Butchers and Meat Processors

The Medoc STL390 Sliding Table Bandsaw is suitable for professional butcher shops, wholesale meat processors, abattoirs and commercial food production facilities requiring a larger-capacity meat cutting machine.

Whether you're upgrading an existing bandsaw, increasing processing capacity or investing in new meat cutting equipment, the STL390 combines generous cutting clearance with durable construction and practical safety features.

At Superior Food Machinery, our experienced team can help you choose the right meat bandsaw for your application, taking into account cutting requirements, available workspace and electrical supply.

Contact Superior Food Machinery for further information, pricing and availability of the Medoc STL390 Sliding Table Meat Bandsaw.
